Voron 0 Assembly Guide: 12. Final Mechanical Assembly

Written By: John Gilbert (and one other contributor)
  • Comments: 0
  • Favorites: 0
  • Completions: 4

Difficulty

Moderate

Steps

5

Time Required

Suggest a time??

Sections

1

Flags

1

User-Contributed Guide

User-Contributed Guide

This guide is not managed by the site's staff.

  1. Attach the top beams as shown. Note the pre-insertion of M3 nuts.

    • Attach the top beams as shown.

    • Note the pre-insertion of M3 nuts.

    Edit

  2. Install the belt tensioning printed nuts.

    • Install the belt tensioning printed nuts.

    Edit

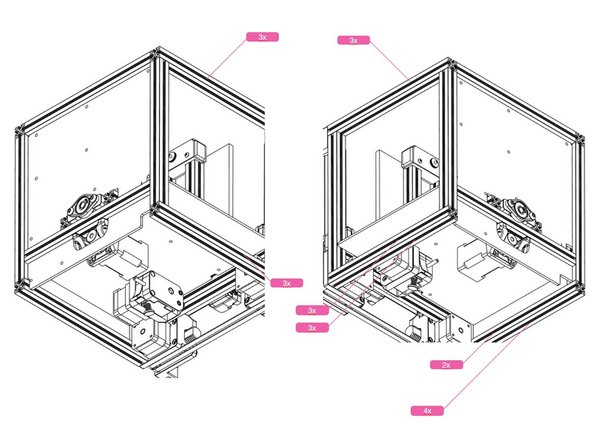

  3. Add nuts as shown.

    • Add nuts as shown.

    • Double check.

    Edit

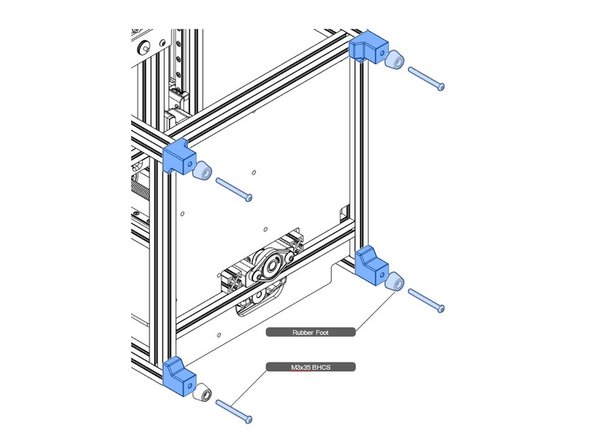

  4. Add printed legs and purchased feet, as shown.

    • Add printed legs and purchased feet, as shown.

    Edit

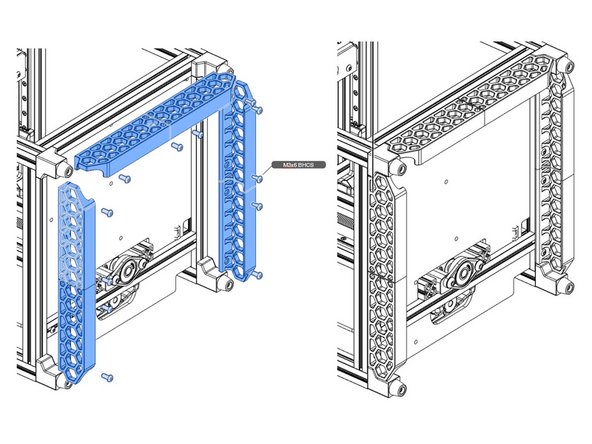

  5. Attach the skirts. A ball end hex drive may be helpful in tightening the skirt screws.

    • Attach the skirts. A ball end hex drive may be helpful in tightening the skirt screws.

    • The mechanical assembly is now complete. Congratulations!
