Difficulty
Easy
Steps
5
Time Required
00:30:00 - 02:00:00
- 01 - Frame Assembly 5 steps
User-Contributed Guide
This guide is not managed by the site's staff.
-
-
Make note of the vertical extrusions if you are upgrading or doing a new build.
-
-
-
Build your frame on a flat surface to help square your frame. Granite countertops work well. Other tools such as a machinist square will work well too.
-
Loctite is not required on the joints but can be added for extra peace of mind.
-
-
-

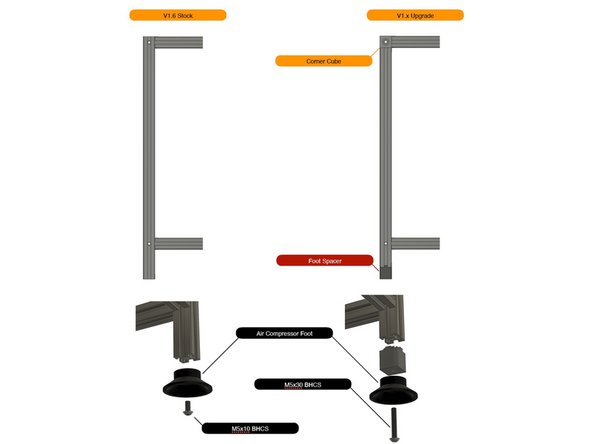

Include the extra spacers if you are upgrading from an early V1 build.
-
-
-

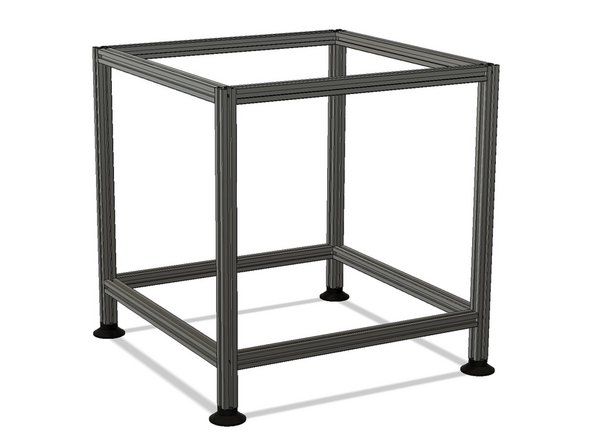

Check that your completed frame is square.
-
Frame should not rock or wobble on a flat surface.
-
Measure diagonals and remove any variance as much as possible.
-
