Hard Wiring Raspberry Pi USB Pads

Written By: Bryansj (and one other contributor)
  • Comments: 1
  • Favorites: 0
  • Completions: 1

Difficulty

Moderate

Steps

4

Time Required

00:05:00

Sections

1

Flags

1

User-Contributed Guide

User-Contributed Guide

This guide is not managed by the site's staff.

  1. The USB pads are located on the bottom of the Pi.

    • The USB pads are located on the bottom of the Pi.

    • +5V goes to the +V of your 5V MeanWell or Buck Converter.

    • GRD goes to the -V of your 5V MeanWell or Buck Converter.

    Edit

  2. Tin your wires and solder to the pads.

    • Tin your wires and solder to the pads.

    • Don't apply too much heat for a long period of time. If you have an old circuit board you should practice on it if you haven't attempted this type of soldering before.

    • Secure the wires to the board. Kapton tape works great.

    Edit

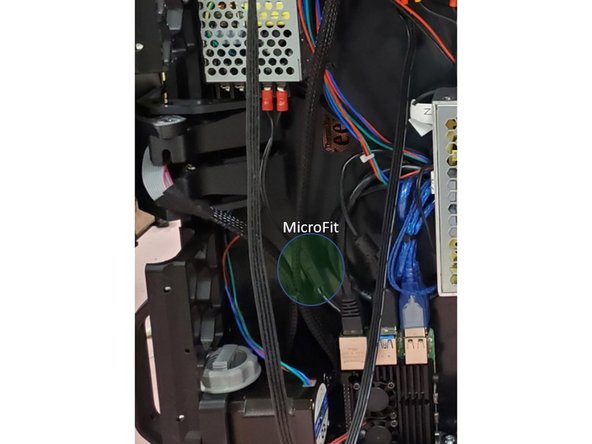

  3. (Optional) Install a connector between the Pi and Power Supply.

    • (Optional) Install a connector between the Pi and Power Supply.

    Edit

    • Tune the voltage of the Power Supply to between 5.1V and 5.2V.

    Edit
