03 - X/Y Joint Assembly

Ensure the two halves mate cleanly or you can have twist along the X axis.

Clean up parts with a hobby knife or small file if necessary.

Insert wisdom here.

Be careful not to over-tighten screws into plastic.

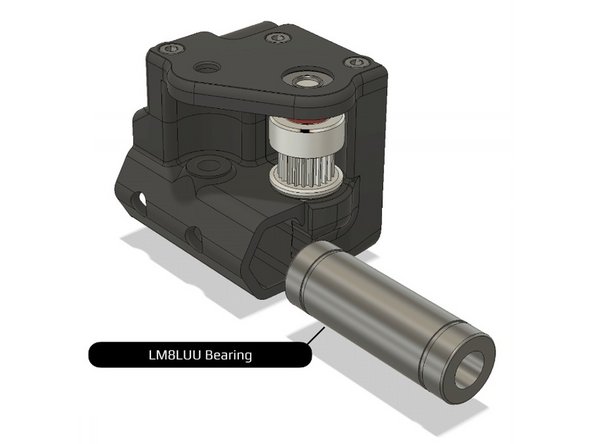

LM8LUU bearing should fit snugly.

You can use a c-clamp or similar tool to apply a slow and steady force to slide the bearing in if necessary.

Insert wisdom here.

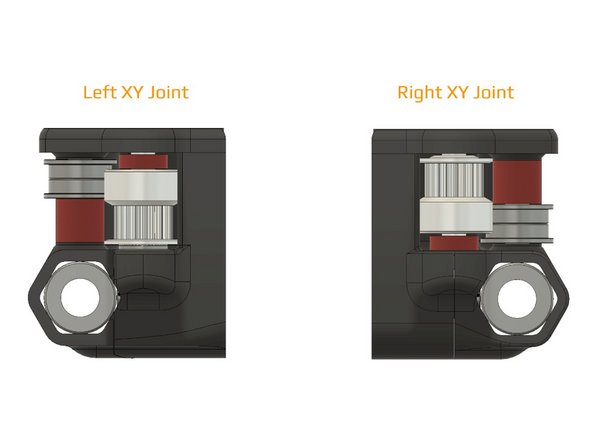

Double check that your spacers and pulleys are located and oriented correctly.
